Understanding 3 Stage Telescopic Cylinders: Features, Applications, and Benefits
Hydraulic Cylinders are critical components in heavy machinery, enabling precise control over lifting, pushing, and pulling operations. Among them, the3 Stage Telescopic Cylinder stands out for its ability to achieve long stroke lengths within a compact retracted size.
This article provides a comprehensive overview of 3 stage telescopic cylinders, highlighting their features, advantages, and practical considerations.

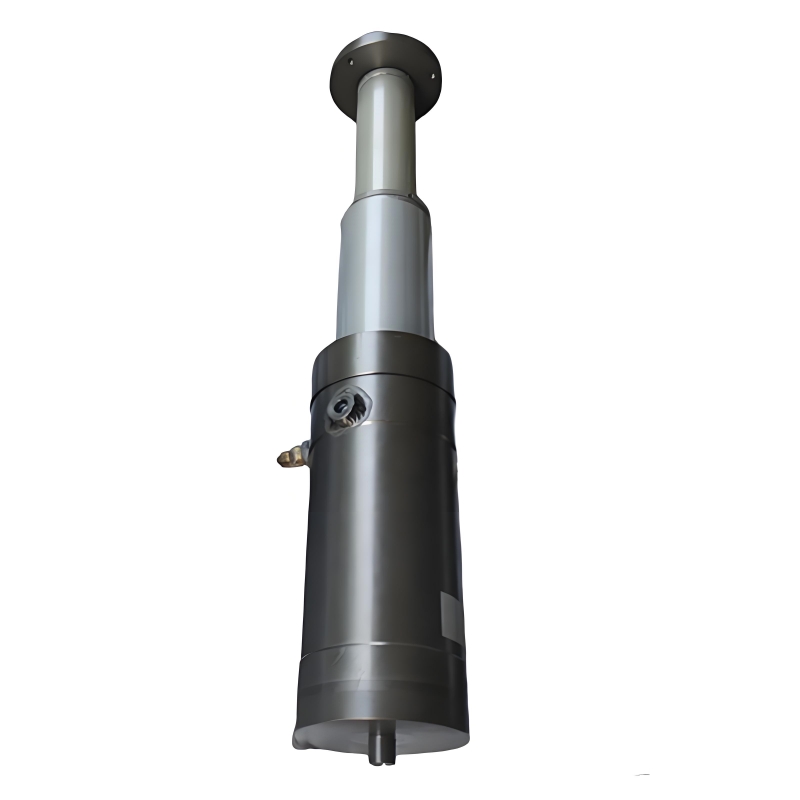

What Is a 3 Stage Telescopic Cylinder?
A 3 stage telescopic cylinder is a hydraulic cylinder composed of three nested tubular sections that extend sequentially. Unlike single-stage cylinders, which can only extend to a limited stroke, telescopic cylinders provide a longer reach while maintaining a shorter retracted length.
Key characteristics include:
- Multiple stages:The cylinder extends in a controlled sequence, with each stage sliding out smoothly
● Compact design:The cylinder retracts into a small space, making it ideal for mobile machinery
● High lifting capacity: Despite the compact size, telescopic cylinders are engineered to handle heavy loads
The primary function of these cylinders is to provide extended linear motion, enabling machinery to lift or tilt large payloads efficiently.
Structure and Components
A 3 stage telescopic cylinder consists of several essential parts:
- Cylinder barrel:Houses the nested stages and hydraulic fluid
● Nested stages (tubes):Each stage is slightly smaller than the previous, allowing sequential extension
● Piston and piston rod: Convert hydraulic pressure into linear movement
● Seals and wipers: Prevent hydraulic fluid leaks and remove dirt and debris
● End caps and mounting hardware: Secure the cylinder to the machinery and allow proper pivoting
The design emphasizes strength and precision. High-strength steel and chrome-plated rods are typically used to enhance durability and reduce friction, while precision machining ensures tight tolerances and reliable operation.
How Does a 3 Stage Telescopic Cylinder Work?
The operation of a 3 stage telescopic cylinder relies on hydraulic pressure and staged extension:
- Sequential extension:Hydraulic fluid enters the base chamber, pushing the first stage outward. The second stage extends as the first stage reaches a set limit, followed by the third stage.
● Retraction:Hydraulic fluid flows into the rod end in reverse sequence, retracting the stages smoothly.
● Load management: Each stage is designed to handle load efficiently, ensuring stability even with extended reach
The staged extension allows operators to achieve long strokes without requiring a long single-stage cylinder, making it ideal for applications with limited installation space.
Applications of 3 Stage Telescopic Cylinders
3 stage telescopic cylinders are widely used in industries where compact design and long reach are essential:
- Dump trucks and tipper vehicles:Tilt the truck bed for unloading material efficiently
● Construction equipment:Extend booms or platforms in compact spaces
● Mobile cranes and lifting devices: Achieve extended reach while maintaining stability
● Specialized industrial machinery: Provide precise movement in space-constrained environments
Their versatility makes them a preferred choice for heavy-duty and mobile applications where conventional cylinders may not be feasible.
Advantages of 3 Stage Telescopic Cylinders
The benefits of using a 3 stage telescopic cylinder include:
- Space-saving design:Compact retracted length allows installation in tight spaces
● Extended reach:Provides longer stroke lengths than single-stage cylinders of similar size
● High load capacity: Designed to handle heavy materials efficiently
● Smooth operation: Sequential stage extension ensures stable movement
● Durability and reliability: Robust materials and precision design reduce wear and maintenance needs
By combining these advantages, 3 stage telescopic cylinders improve efficiency and operational safety.
Maintenance and Inspection Tips
Proper maintenance ensures the longevity and performance of telescopic cylinders. Key practices include:
- Regularly inspecting for hydraulic leaks, cracks, or bent rods
● Checking seals and wipers for wear and replacing them as needed
● Maintaining clean hydraulic fluid at correct levels
● Lubricating pivot points and joints
● Avoiding overloading or sudden impacts to prevent bending or damage
Proactive maintenance reduces downtime, prevents costly repairs, and ensures safe operation in industrial environments.
Choosing the Right 3 Stage Telescopic Cylinder
When selecting a 3 stage telescopic cylinder, consider the following factors:
- Stroke length:Ensure the cylinder meets the required reach
● Load capacity:Verify that the cylinder can handle maximum operating loads
● Mounting configuration: Check space constraints and attachment requirements
● Hydraulic pressure rating: Match cylinder specifications to the hydraulic system
● Material and durability: Choose high-quality materials for heavy-duty use
Proper selection ensures efficient operation, extended service life, and safety.
Common Challenges and Solutions
Even high-quality 3 stage telescopic cylinders can encounter operational issues. Common challenges include:
- Stage sticking or uneven extension:Often caused by debris, misalignment, or seal wear
● Hydraulic leaks:Can result from damaged seals, loose fittings, or corrosion
● Rod bending: Overloading or impact may cause permanent deformation
● Noise or vibration: Hydraulic fluid contamination or internal wear can impair smooth operation
Early detection and corrective measures are crucial to maintaining cylinder performance and reliability.
Conclusion
3 stage telescopic cylinders are vital components for machinery requiring long strokes in compact spaces. Their design allows sequential extension of nested stages, providing extended reach, high load capacity, and smooth operation. Widely used in dump trucks, construction equipment and specialized industrial machinery, these cylinders enhance efficiency, safety, and operational precision.
Regular maintenance, careful selection, and proactive inspection are essential to maximize performance and lifespan. Understanding the structure, operation, and benefits of 3 stage telescopic cylinders enables operators, engineers, and maintenance teams to optimize equipment performance and ensure reliable, long-term operation.
FAQ
Q1: What industries commonly use 3 stage telescopic cylinders?
● They are widely used in construction, mining, dump trucks, and mobile cranes where extended reach and compact installation are critical.
Q2: How does a 3 stage telescopic cylinder differ from a single-stage cylinder?
● A 3 stage cylinder provides longer strokes within a compact retracted length by extending stages sequentially, whereas a single-stage cylinder has a fixed stroke and requires more installation space.
Q3: What maintenance is essential for telescopic cylinders?
● Inspect seals, rods, and stages regularly, maintain clean hydraulic fluid, lubricate pivot points, and avoid overloading or impact.
Q4: Can telescopic cylinders be customized?
● Yes, stroke length, load capacity, mounting configuration, and material can often be tailored to meet specific machinery requirements.
